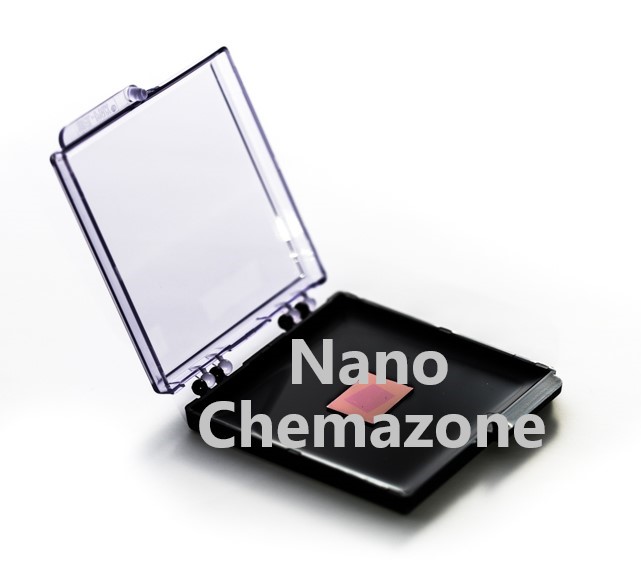

CVD Graphene on Copper Foil
₹0.00
CAS No.: 7782-42-5 (graphene), 7440-50-8 (copper)
PREPARATION METHOD:Â CVD Method
WAFER STRUCTURE: Graphene on Copper Foil (both sides), Copper Foil 45 µm
CHARACTERIZATION & ANALYSIS
Predominantly Single-layer Graphene on Copper Substrate
| Sheet Resistance | <600Ω/sq |
| Custom Order | <300Ω/sq |
| Transparency | >95% |
| Product Name |
CVD Graphene on Copper Foil |
| Stock No. | NCZ-GSW-0016 |
| Purity | > 99.9% |
| Graphene Film | |
| FET Electron Mobility on Al2O3 | 2000 cm2/Vs |
| Hall Electron Mobility on SiO2/Si | Â 4000 cm2/Vs |
Description
Note: For pricing & ordering information, please contact us at sales@nanochemazone.com
Please contact us for quotes on Larger Quantities & Customization. E-mail: contact@nanochemazone.com
Customization:
If you are planning to order large quantities for your industrial and academic needs, please note that customization of parameters (such as size, length, purity, functionalities, etc.) are available upon request.
Shipping & Delivery
