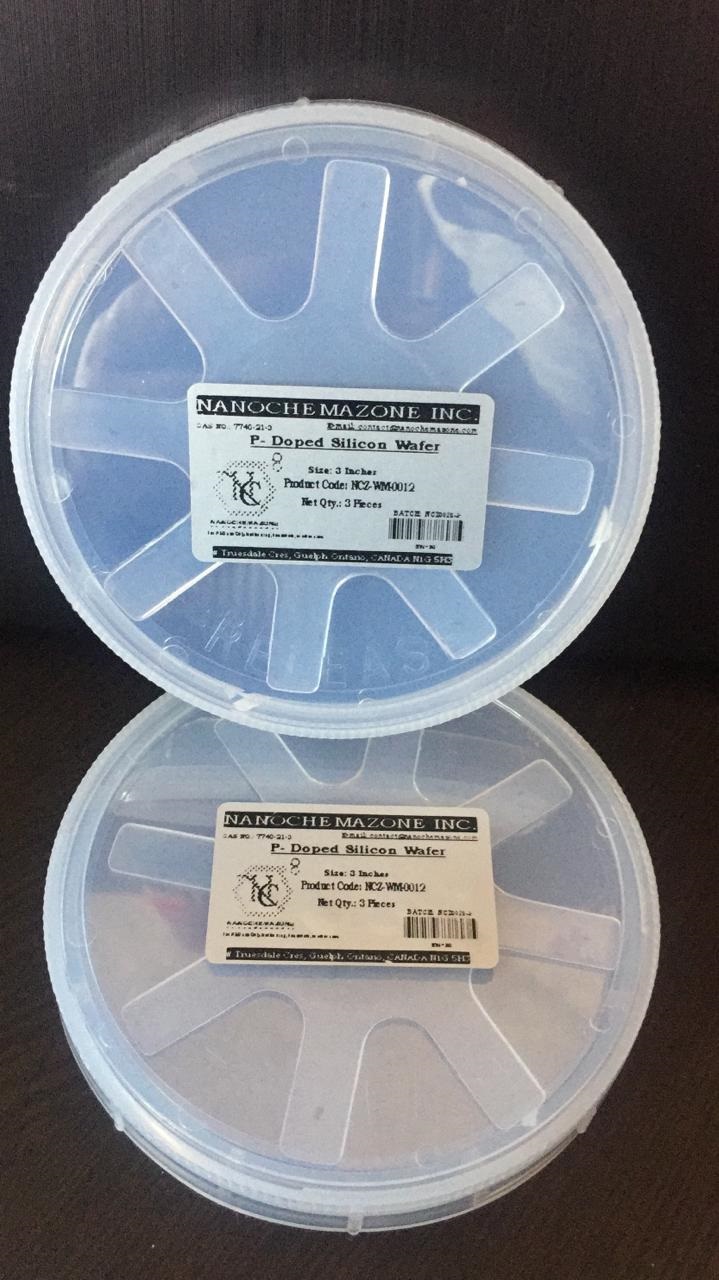

Doped Silicon Wafer
₹0.00
Doped Silicon Wafer
| Product Name | Doped Silicon Wafer |
| Product Code | NCZ-WM-0016 |
| CAS | 7440-21-3 |
| Diameter (mm) | 2” (50.8 mm), also available in 3, 4, 6, 8, 12 inches |
| Type | P-Type and N-Type |
| Doping | Boron etc. |
| Crystal Orientation | <100> /other orientations are also available |
| Surface | Single/Both Side Polished |
| Thickness | 200-750 μm |
| Resistivity | 1-10 ohm-cm |
| Crystal method | CZ |
| RRG (%) | ≤12 |
| Oxygen Contents (ppm) | 12.5-16.5 |
| Carbon Contents (ppm) | ≤1 |
Please enquire for other wafers having different thicknesses, Diameter, Length, and sizes, etc.
If the item is shown is not exactly what you require please let us know by sending us a message
Note: For pricing & ordering information, please contact us at sales@nanochemazone.com
Please contact us for quotes on Larger Quantities & Customization. E-mail: contact@nanochemazone.com
Customization:
If you are planning to order large quantities for your industrial and academic needs, please note that customization of parameters (such as size, length, purity, functionalities, etc.) are available upon request.
