Graphene on Ultra-Fine 200 Mesh Copper TEM Grids
₹0.00
Graphene coated TEM Grids
| Product Name | Graphene On Ultra-Fine 200 Mesh Copper TEM Grids |
| Stock No. | NCZ-GSW-0014 |
| Purity | > 99.9% |
| Graphene Film | |
| FET Electron Mobility on Al2O3 | 2000 cm2/Vs |
| Hall Electron Mobility on SiO2/Si | Â 4000 cm2/Vs |
| Sheet Resistance |  450±40 Ω/sq (1cm x1cm) |
CAS No.: 7782-42-5
Characteristics
- Four thicknesses of CVD graphene:Â Available in either 1, 2, 3-5 or 6-8 layers
- TEM Substrate:Â Microporous Copper TEM Grids with Beryllium-Copper Support Aperture
- Graphene coverage of the TEM grid is better than 75%

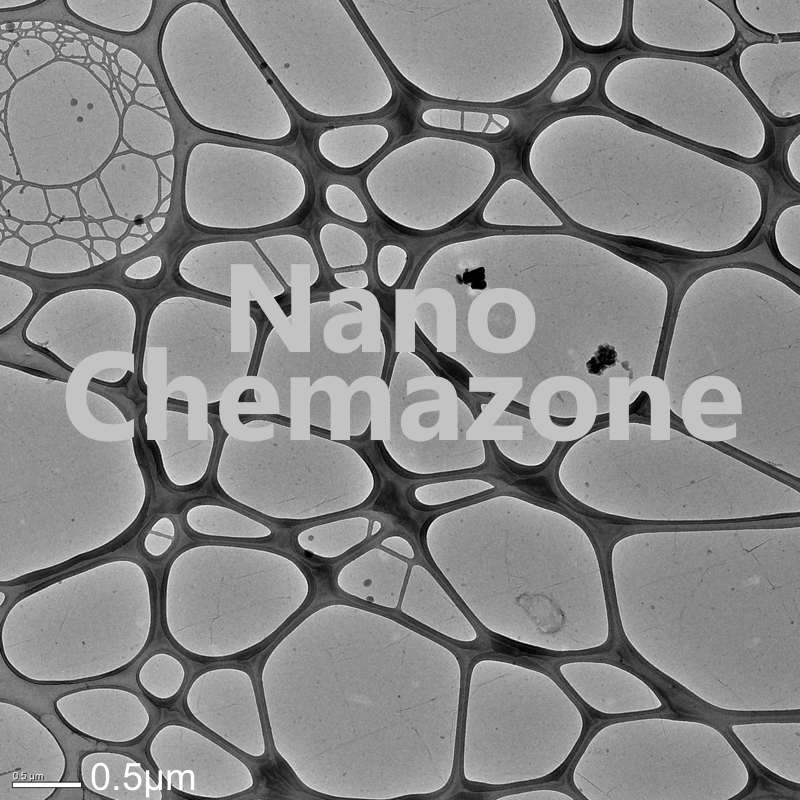

Appearance
The graphene film appears as a near-transparent to light-grey film on the surface of the red-brown microporous copper TEM grid. For support, the TEM grid is attached using epoxy to a gold-colored beryllium-copper disk with a 2x1mm aperture.
| Type | Thickness of the Graphene | Transparency | TEM Grid/AFM Substrate | Support Film |
| 1 Layer | Â ~0.35 nm | Â ~96.4% | 200 Mesh Copper Grid | N/A |
| 2 Layers | Â ~0.7 nm | Â ~92.7% | 200 Mesh Copper Grid | N/A |
| 3-5 Layers | Â 1.0-1.7 nm | Â ~85.8-90.4% | 200 Mesh Copper Grid | N/A |
| 6-8 Layers | Â 2.1-2.8 nm | Â ~78.5-83.2% | 200 Mesh Copper Grid | N/A |
Please contact us for customization and price inquiry.
Description
Note: For pricing & ordering information, please contact us at sales@nanochemazone.com
Please contact us for quotes on Larger Quantities & Customization. E-mail: contact@nanochemazone.com
Customization:
If you are planning to order large quantities for your industrial and academic needs, please note that customization of parameters (such as size, length, purity, functionalities, etc.) are available upon request.
